Outdoor Electrical Waterproof Junction Box, Grey Cover
Outdoor Electrical Waterproof Junction Box, Grey Cover
Regular price
$20.99
Regular price
$20.99
Sale price
$20.99
Unit price
per
Shipping calculated at checkout.
Earn [points_amount] when you buy this item. Join Reward Program to get points for your purchase.
Couldn't load pickup availability
- Reliable Insulation: Made from high-quality ABS material, providing heat resistance, impact protection, and excellent insulation; allows easy drilling and cable access; equipped with a 1/2" and a 3/8" NPT cable glands
- Reliable Protection: IP67-rated for complete dust resistance and strong waterproof seal; designed to perform in high-humidity environments, safeguarding electrical components in both indoor and outdoor installations
- Convenient Access: Hinged cover with metal latches for easy opening and closing; lockable design prevents unauthorized access; grey covers conceal components while providing resistance to sun exposure
- Easy Installation: Pre-install a grid mounting plate to mount circuit boards, terminals, and other electrical components; includes 304 stainless steel wall brackets and screws to mount or hang the junction box on a wall
- Wide Application: Offered in a variety of sizes for different installation needs; use for electrical wiring in residential, commercial, and industrial applications, as well as DIY projects
Package Includes
- Junction Box x 1
- Mounting Plate (Pre-Installed) × 1
- 304 Stainless Steel Wall Bracket × 4
- Wall Bracket Screw × 4
- NPT 3/8” × 1
- NPT 1/2” × 1
Size Chart
|
Box Size |
External |
Internal |
Mounting Plate |
||||||
|
Width |
Depth |
Height |
Width |
Depth |
Height |
Width |
Length |
Thickness |
|
|
4.7" x 2.8" x 6.3" |
4-3/4" |
2-7/8" |
6-1/4" |
3-1/8" |
2" |
5-1/8" |
2-15/16" |
4-7/8" |
1/8" |
|

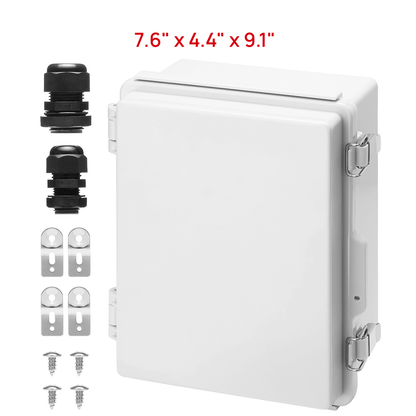

7.6" x 4.4" x 9.1" |
7-5/8" |
4-3/8" |
9" |
5-7/8" |
3-1/2" |
7-7/8" |
5-1/2" |
7-1/2" |
1/8" |
|

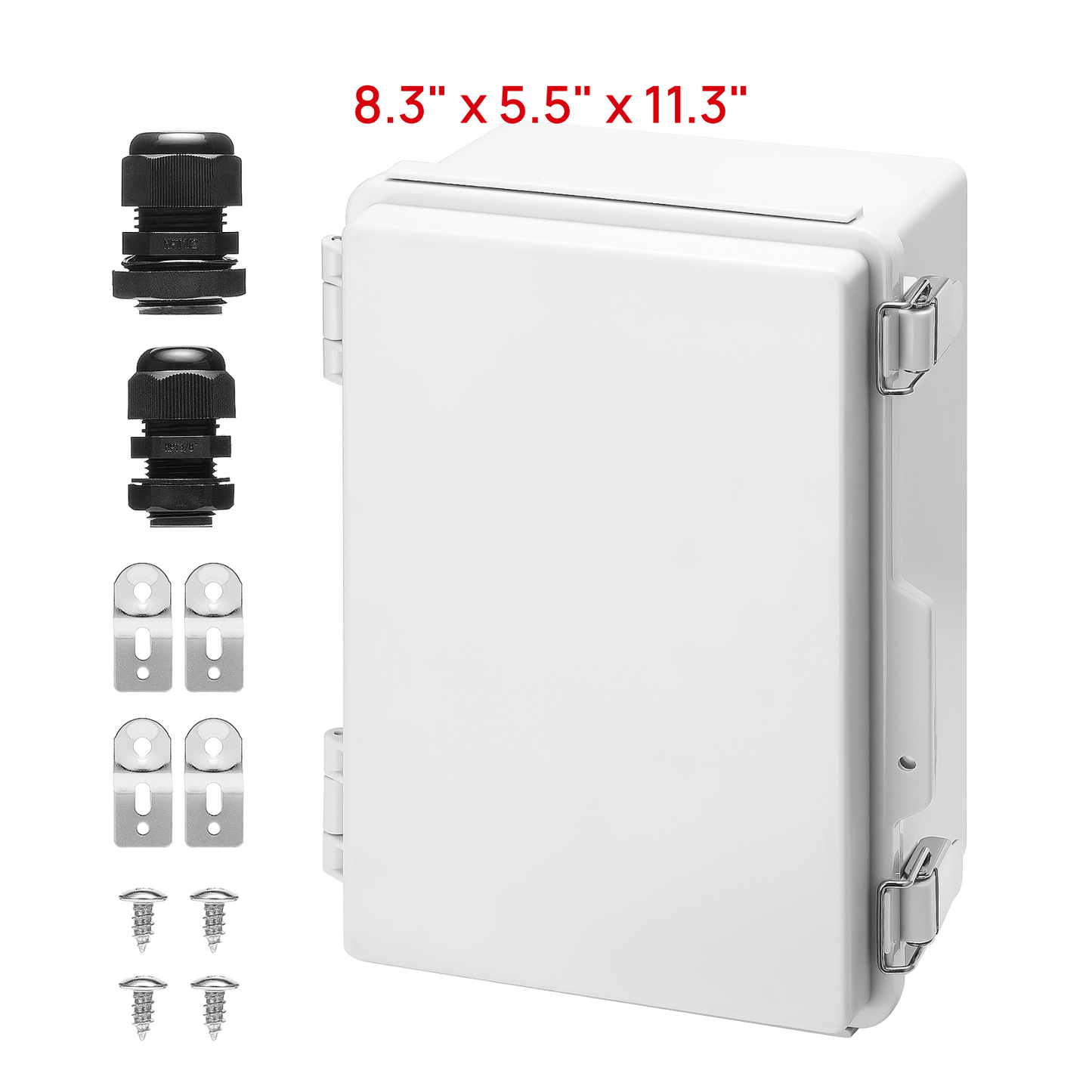

8.3" x 5.5" x 11.3" |
8-3/8" |
5-1/2" |
11-1/4" |
6-5/8" |
4-1/2" |
10-1/4" |
6-1/4" |
9-13/16" |
1/8" |
|
10.7" x 6" x 13.8" |
10-5/8" |
6-1/8" |
14" |
9" |
5-1/8" |
13" |
8-5/8" |
12-1/2" |
1/8" |
|

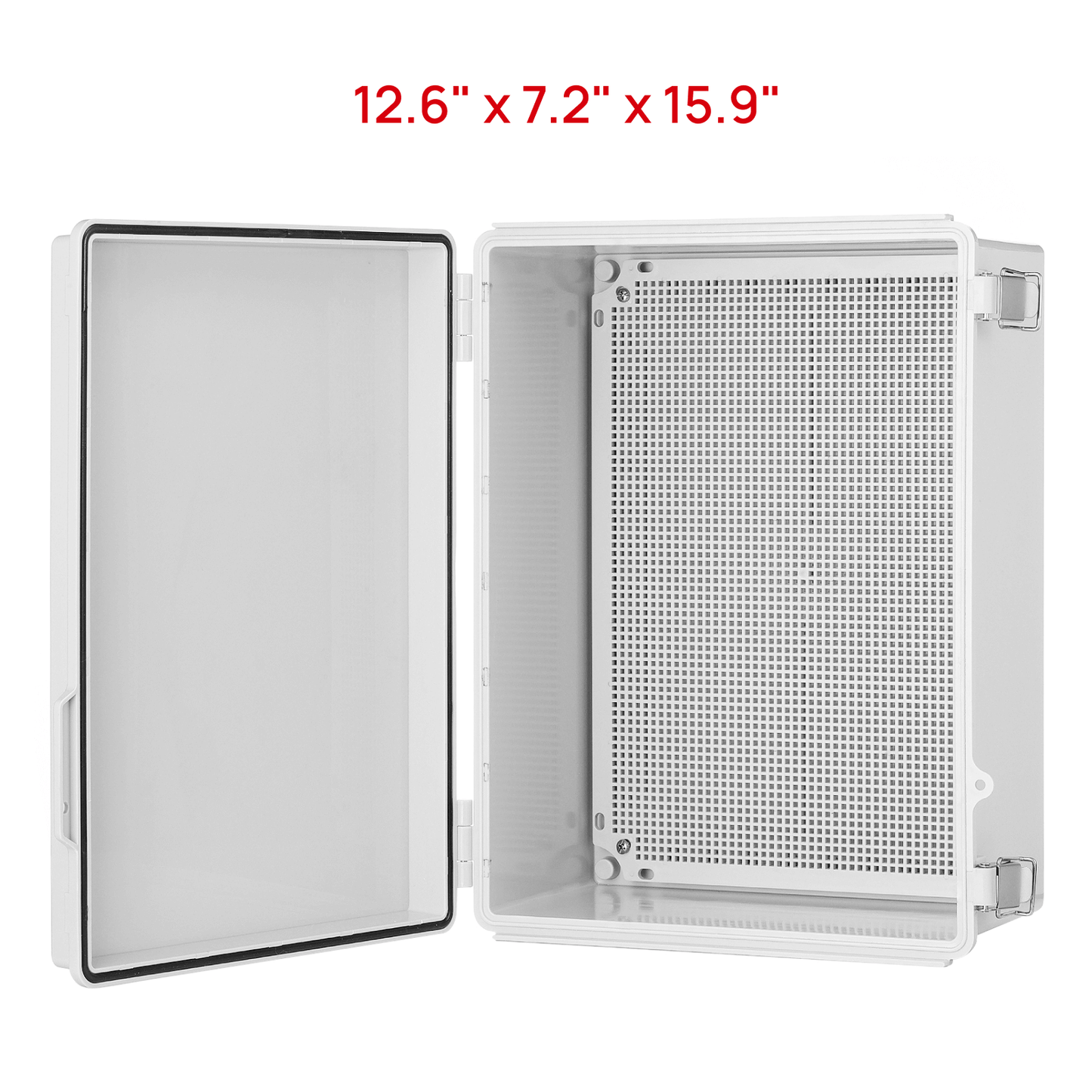

12.6" x 7.2" x 15.9" |
12-5/8" |
7-1/8" |
16" |
10-7/8" |
6-1/8" |
14-7/8" |
10-5/8" |
14-1/2" |
1/8" |
